Readable through the Painting Process

Marking of regulators and oil pumps with folding paint mask label

Whenever individually marked components are painted the inscription has to be protected against the paint in order to be readable again after the painting process. Schreiner ProTech’s portfolio includes a label with a paint mask attached to the marking label. Following the inscription of the 2D code, the folding paint mask is applied by means of its folding mechanism. The company InLine Hydraulik GmbH relies on exactly this solution for marking controllers and hydraulic pumps in the painting process.

In the past, InLine Hydraulik used metal nameplates to mark components at the end of the production process, which precluded automated integration of digital information and storage or tracing. Schreiner ProTech's new hinged paint protection label is printed with a 2D code on site and manually applied to the pumps and controllers early in the manufacturing process. After painting, the paint mask is peeled off, which ensures readability. This new solution made it possible to introduce 2D code marking enabling inLine Hydraulik to optimize the manufacturing process and enhance its reliability. Now, automated traceability is ensured at any time.

Schreiner ProTech’s paint mask solution offers the additional option of combining a removable paint mask label with durable overlamination for permanent protection of the nameplate underneath against mechanical stress. After the drying process of the coats of paint, the protection label is peeled off using a starter tab. This ensures easy handling even when working with gloves. The paint mask itself is a little smaller than the marking label. As a result, the label will remain embedded in the paint after removal of the paint mask film and thus be permanently protected.

Press Images

Publication free of charge with © Schreiner ProTech

Hydraulic pump

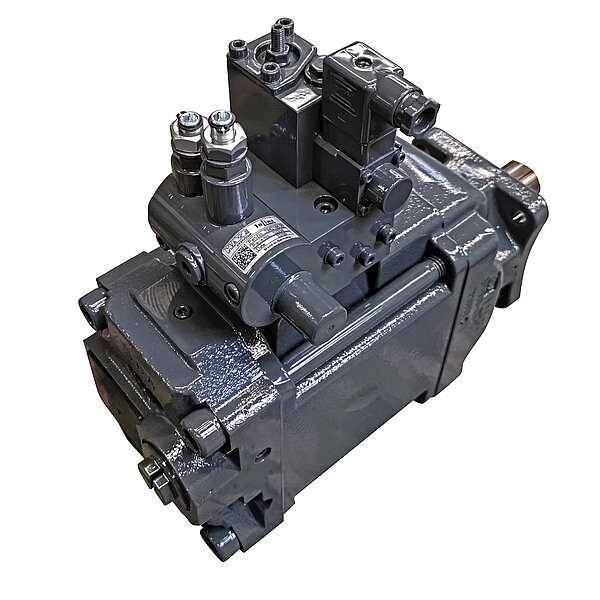

Hydraulic pump from InLine Hydraulik with folding paint mask after painting process

Download (Format: jpg, 935 KB)

About Schreiner ProTech

Schreiner ProTech, a business unit of Schreiner Group GmbH & Co. KG based in Oberschleissheim near Munich (Germany) and production sites in Blauvelt (USA) and Shanghai (China), develops innovative film-based functional components and industrial marking and security solutions. From thermal-transfer printing, laser marking and RFID solutions all the way to pressure compensation seals: the certified development partner and systems supplier offers solutions which help optimize processes, reduce costs, make life healthier and safer, and enhance human mobility. All of Schreiner ProTech’s solutions for the mobility and electronics markets as well as for mechanical engineering are specifically tailored to meet customers’ needs.
