Product Overview

Pressure Compensation Seals

Pressure Compensation Seals consist of a waterproof and dust-proof but air-permeable membrane. This allows air exchange in enclosures and protects the electronics from liquid media and dirt.

Pressure Compensation Seals for Venting

Overpressure or underpressure caused by temperature fluctuations in summer and winter can deform electronic housings in automobiles and lead to leaks. Pressure Compensation Seals provide pressure compensation and protect housings and components in the automotive sector. They are gas-permeable and water-tight at the same time.

The business unit Schreiner ProTech has been working with this proven technology for venting of housings since 1997. The membranes prevent pressure differences from occurring in a housing and thus increase the service life of electronic components.

Your Advantages at a Glance

  • Easy attachment by self-adhesive equipment or ultrasonic welding
  • High air flow rate for fast compensation of pressure differences
  • High water retention capacity
  • High flexibility in product design in terms of shape, size, material and adhesive
  • No change in housing geometry, due to mechanical fastening to the housing
  • Low overall height <0.5mm
  • Fabrication on roll for manual or automatic application
  • Application-specific product validation
  • Project planning and implementation of processing and testing systems (from standard dispensing systems to complete manufacturing cells)

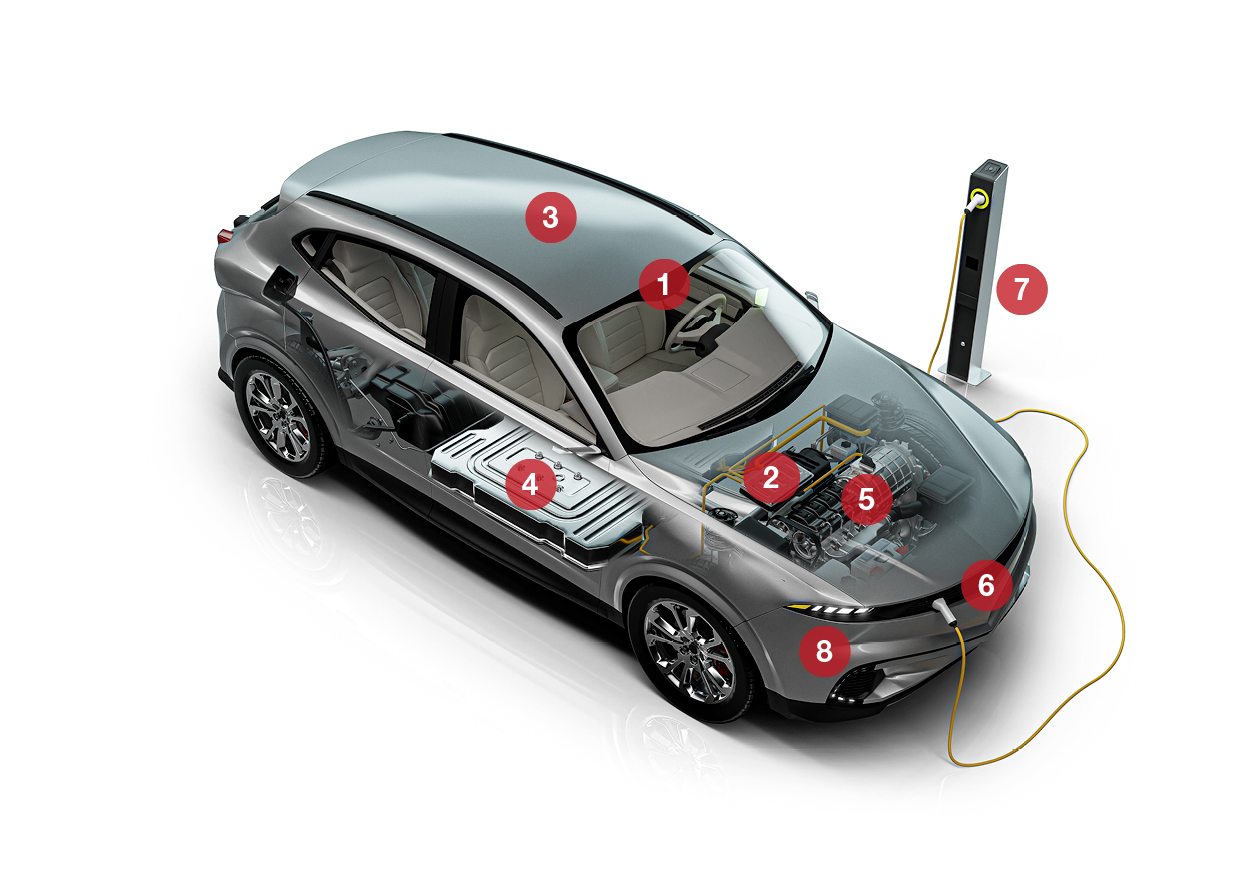

Possible Applications in the Automotive Sector

RFID

#1 Sensors

Ultrasonically weldable PCS
Self-adhesive PCS
PCS HighProtect

#2 Converter

Ultrasonically weldable PCS
Self-adhesive PCS

#3 Heater

Self-adhesive PCS
PCS HighProtect

#4 Battery

Ultrasonically weldable PCS
Self-adhesive PCS

#5 Electric Motor

PCS HighProtect
Self-adhesive PCS
Ultrasonically weldable PCS

#6 Charging Port

Self-adhesive PCS
Ultrasonically weldable PCS
PCS HighProtect

#7 Infrastructure

Self-adhesive PCS

#8 Vehicle Lighting

Self-adhesive PCS for Vehicle Lighting

#9 On-Board Charger

PCS HighProtect

Use Cases Automotive

Marking and Pressure Compensation

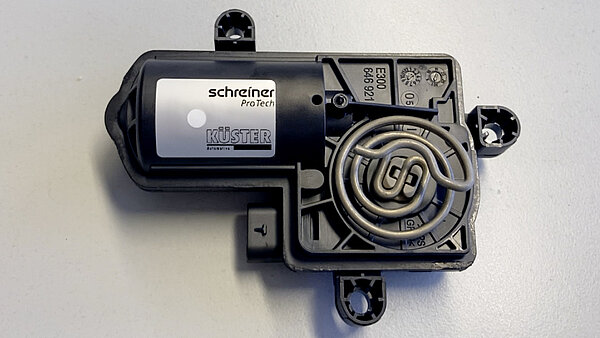

Pressure Compensation Seals in the nameplate protect and mark actuators produced by Küster Automotive.

To the Article

Safer Maneuvers

Radar lane change assistant instead of blind spot:
Pressure Compensation Seals protect the sensors' sensitive electronics.

To the Article

Our Product Solutions

Self-adhesive

The self-adhesive coating ensures ease of handling and fast application without extensive curing and drying times.

Self-adhesive pressure compensation seals on housing

Ultrasonically weldable

Due to being fastened by ultrasonic welding, the membrane resists even the most challenging external influences.

Ultrasonic welded membrane for pressure compensation

Markable

The nameplate-integrated Pressure Compensation Seal combines marking, venting, and component protection in one process step, which saves processing times and space on the component surface.

Pressure compensation element in nameplate on housing

High Protect

Despite its minimal installed height PCS HighProtect satisfies the exacting requirements of IP4K and IP6K. In addition, it can be marked without major modifications to the component design and is easy to process.

Pressure compensation seal on cold metal surface

Important

The decision to use a Pressure Compensation Seal for electronic components is the first step toward enhancing the durability, quality, and protection of your products. The second step is focused on proper installation and utilization of the Pressure Compensation Seals to ensure the full functionality of the Pressure Compensation Seals in field use. Get in touch with us. We’ll be pleased to provide advice and assist you.
