Advanced driver assistance systems (ADAS) pave the way to self-driving vehicles. In 2022, they will become mandatory in the EU in order to improve road safety. To achieve this objective, the camera, Radar and LiDar (light detection and ranging) systems have to accurately function in all weather conditions. Especially at freezing temperatures, sensors must be deiced quickly and kept ice-free while the vehicle is on the road. Specifically for ADAS applications, Schreiner ProTech offers innovative film heaters based on printed electronics. Installed in the enclosures of the environment-monitoring systems, they ensure reliable and permanent deicing of the sensors.

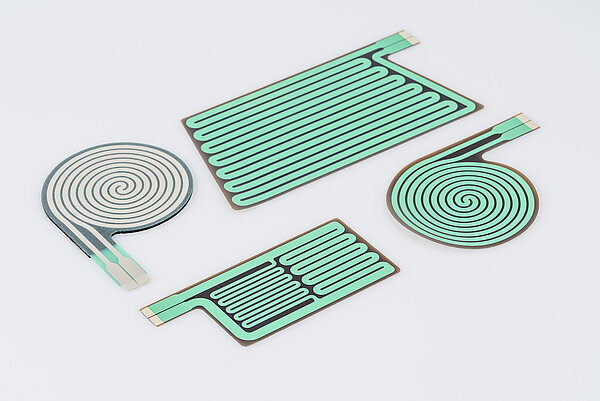

The functional films are lightweight, flat and flexible so that they can be applied close or directly to the sensor with minimal space requirements, which makes them ideally suited for this specific type of application. The flexibility of the films and the variable design of the conductive tracks allow for customization of the film heater in terms of shape and size, and adaption to any geometry and curvature of the component. Due to state-of-the-art die cutting, laser and printing technologies, even complex contours with tight tolerances can be achieved. The planar surface of the printed heating structures avoids the conductive tracks potentially being visible in installed condition. The heating solution is also available as a self-adhesive version, which reduces installation requirements.
A special forte of this solution: Individual heating performance can be adapted to the parameters of temperature, voltage, surface heating performance and homogeneity. This flexibility makes it possible to find the ideal solution for the respective ambient conditions and customer requirements. The film heater can be installed very close to the sensor, which results in fast heating and thus ensures reliable sensor performance.
Another advantage: The film heater can be integrated into existing customer processes such as adhesive bonding, insert molding and clamping.
Publication free of charge with © Schreiner ProTech
Download (Format: jpg, 609 KB)
Download (Format: jpg, 656 KB)
Schreiner ProTech, a business unit of Schreiner Group GmbH & Co. KG based in Oberschleissheim near Munich (Germany) and production sites in Blauvelt (USA) and Shanghai (China), develops innovative film-based functional components and industrial marking and security solutions. From thermal-transfer printing, laser marking and RFID solutions all the way to pressure compensation seals: the certified development partner and systems supplier offers solutions which help optimize processes, reduce costs, make life healthier and safer, and enhance human mobility. All of Schreiner ProTech’s solutions for the mobility and electronics markets as well as for mechanical engineering are specifically tailored to meet customers’ needs.
